Deploy the AI Platform virtual appliance from an OVA on VMware vSphere using the vSphere Client.

Before You Begin

• Access to VMware vSphere with permission to create new virtual machines.
• The appliance OVA downloaded from the cloud Console.
• A host that meets the machine specifications.

Step 1: Download the Appliance Image

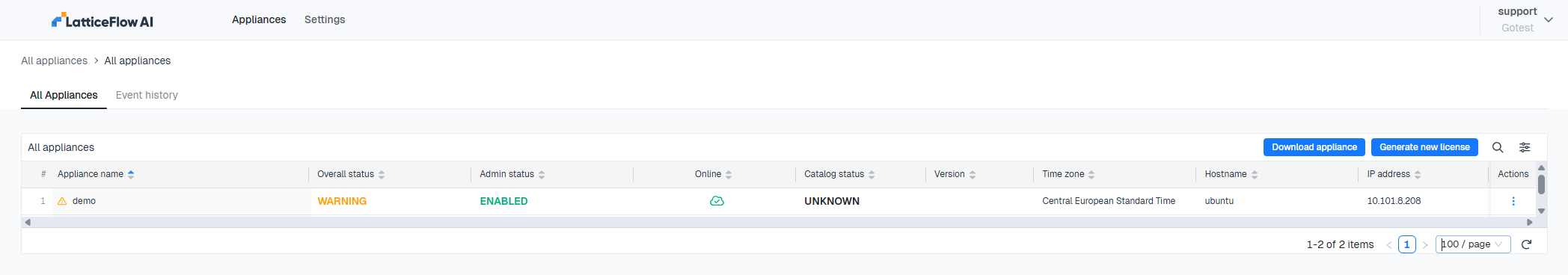

Download the VMware appliance image (OVA) from the cloud Console, under the Appliances menu.

Save the downloaded ZIP to a location your vSphere Client can reach, then unzip it.

Step 2: Deploy the OVF Template

Log in to the vSphere Client with an account that has permission to create virtual machines.

📘

All vSphere features introduced in vSphere 8 and later are available only through the vSphere Client (web). The legacy desktop client supports the same feature set as vSphere 8.

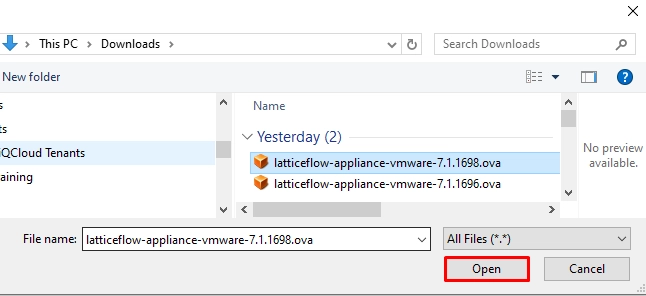

Select File → Deploy OVF Template, browse to the OVA you unzipped, then select Next.

Complete the wizard:

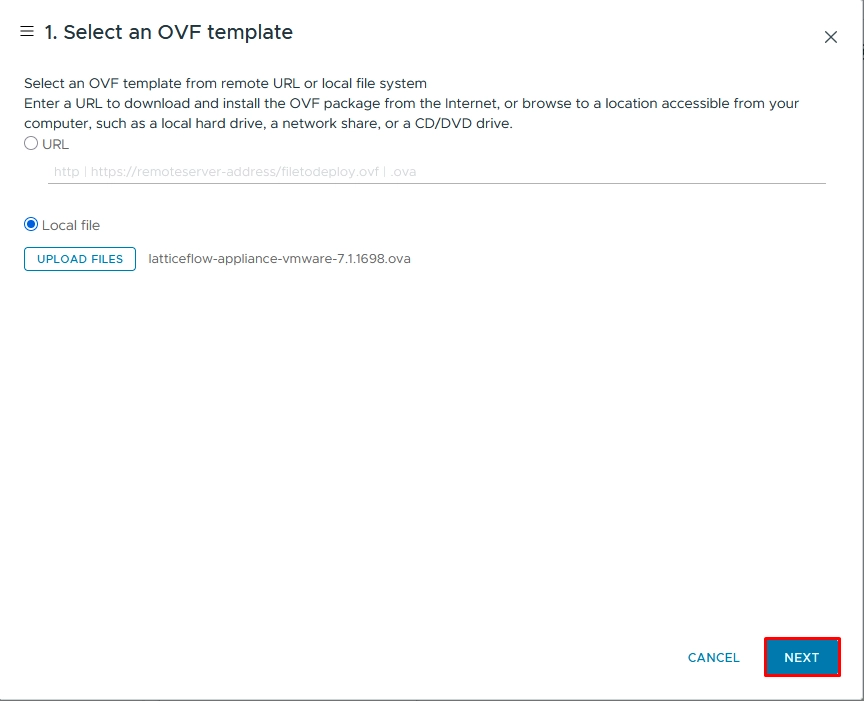

Step 2.1: Select an OVF Template

Enter a URL to the OVF package or point to the OVA on a local drive or network share. Verify the template details, then select Next.

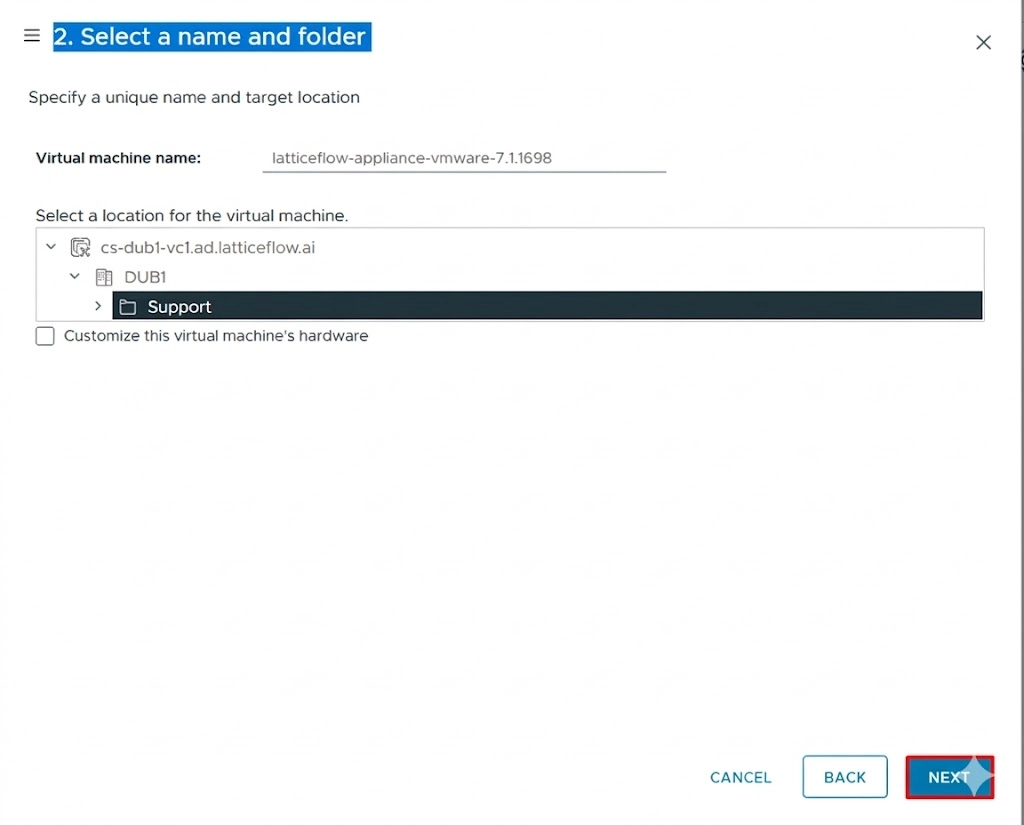

Step 2.2: Select a Name and Folder

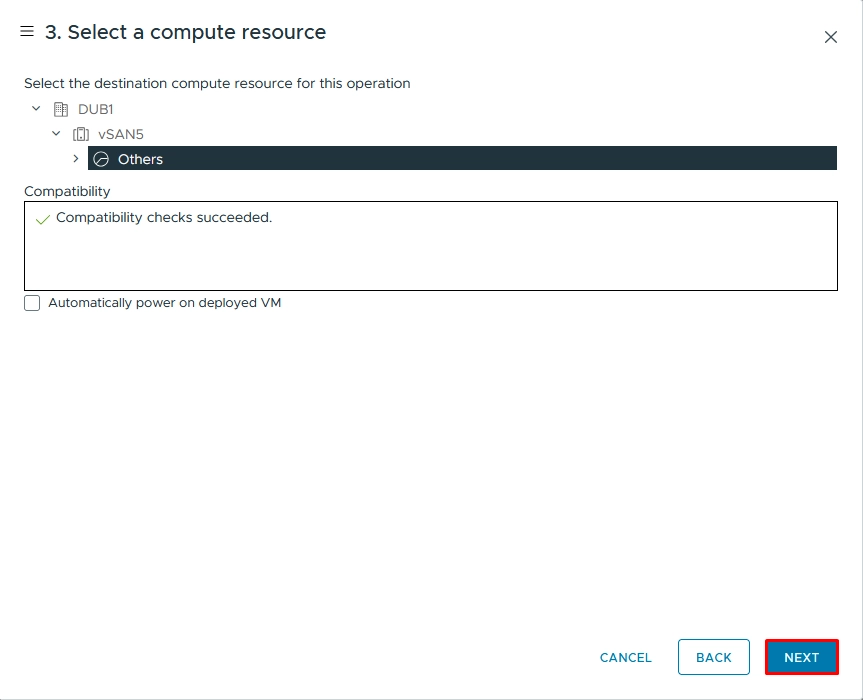

Step 2.3: Select a Compute Resource

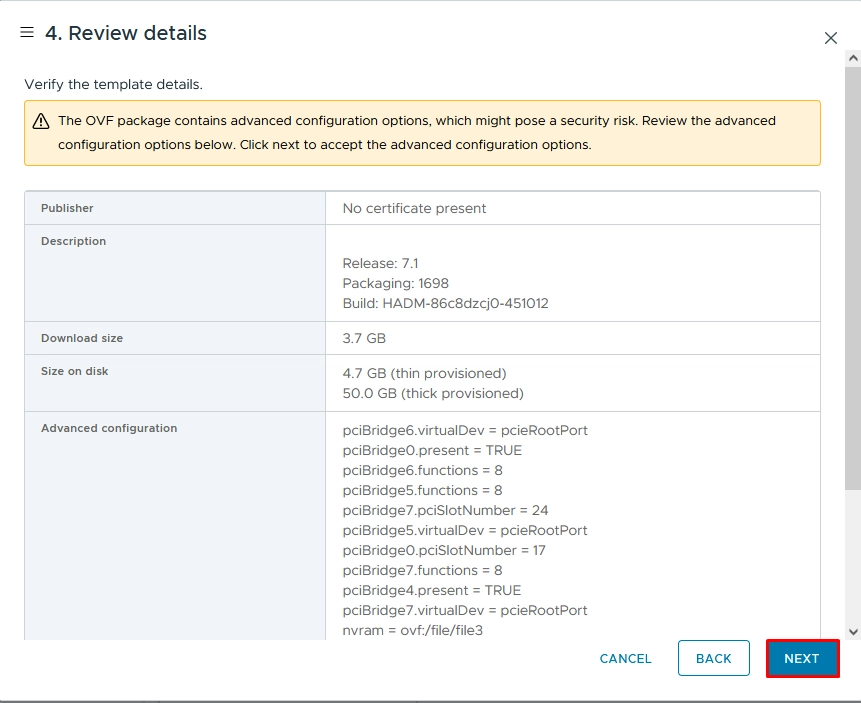

Step 2.4: Review Details

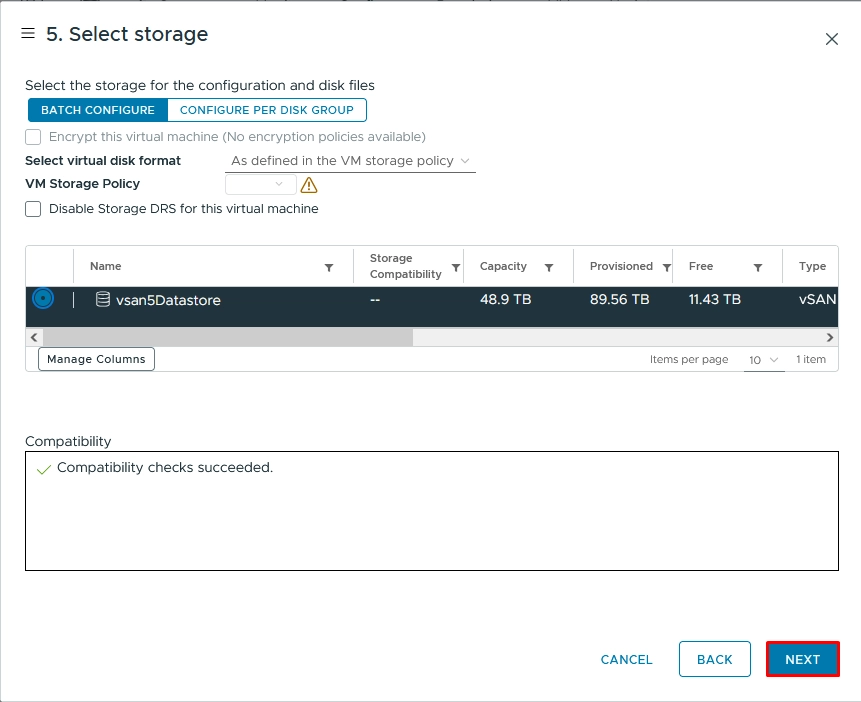

Step 2.5: Select Storage

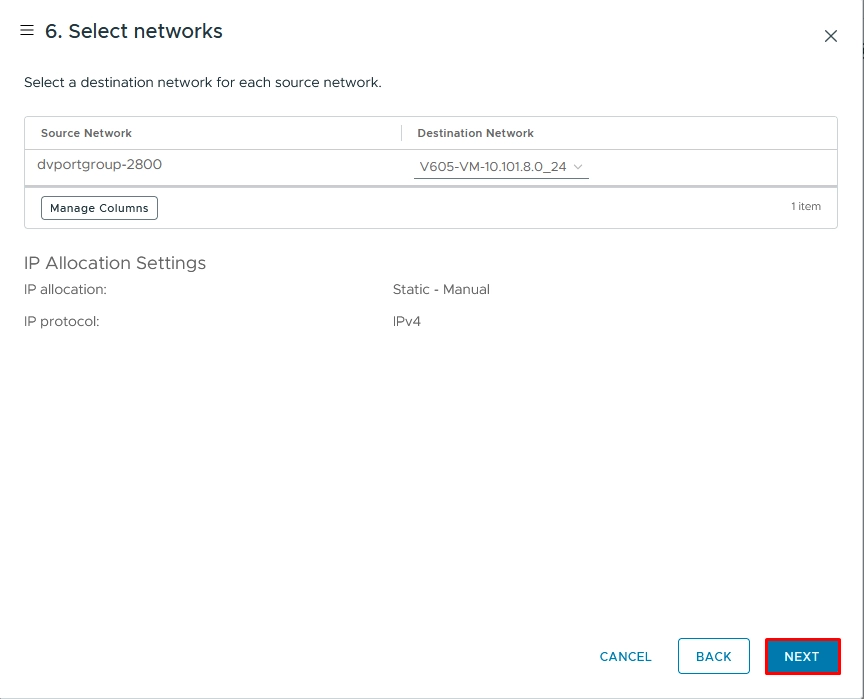

Step 2.6: Select Networks

Select a destination network for each source network, then select Next.

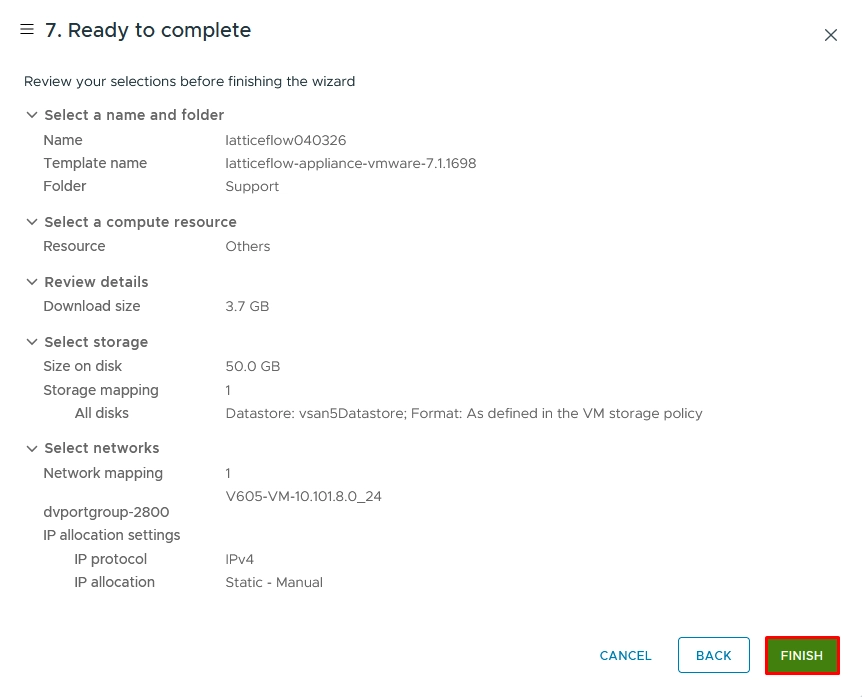

Step 2.7: Ready to Complete

Review your selections, then select Finish.

After the appliance is created, a confirmation appears and the new virtual machine is listed in the vSphere Client.

Step 3: Power On the Appliance

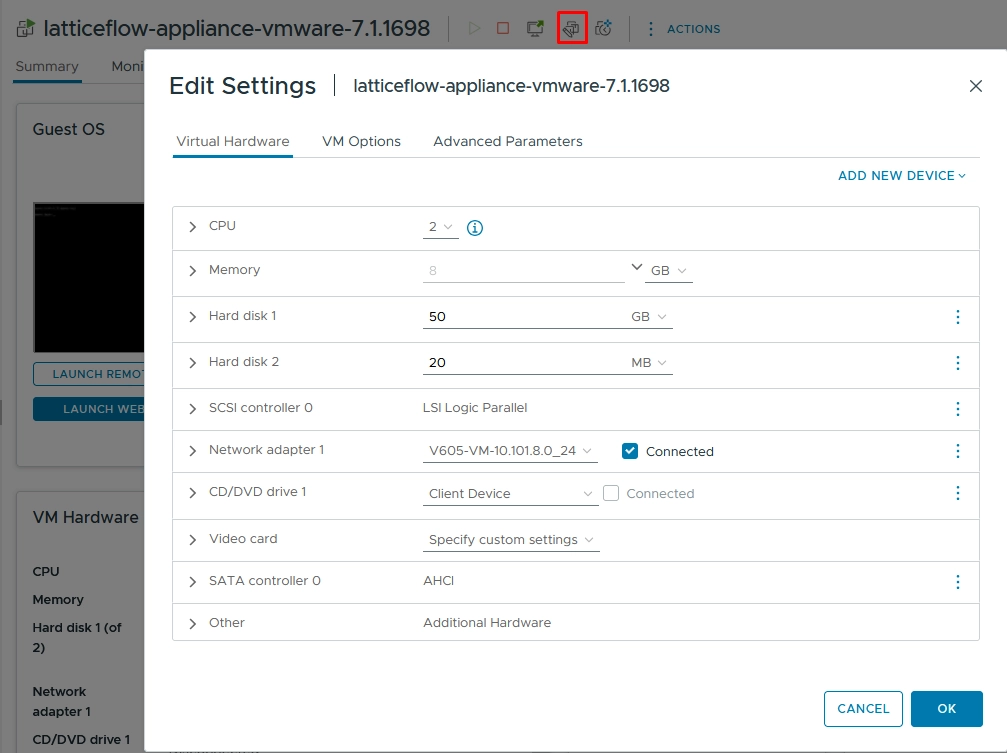

In the list of deployed virtual machines, right-click the appliance and select Edit Settings to adjust resources if needed.

Right-click the appliance again, then select Power → Power On.

The appliance is now deployed. Next, configure the virtual appliance.
